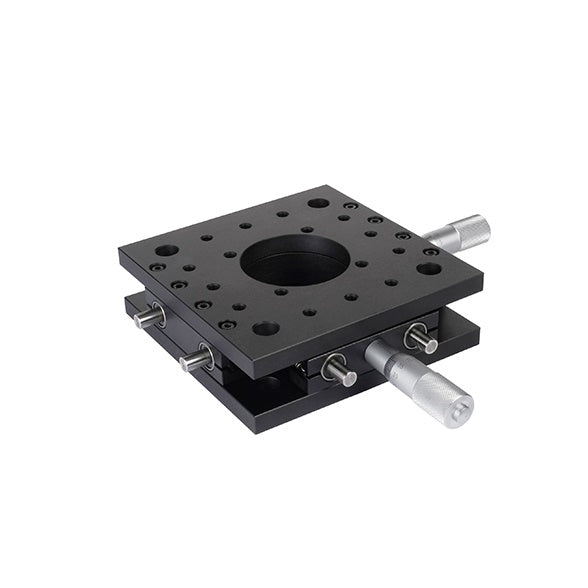

P-Medium Stages

Using lightweight objects or objects with large surface areas, it can be adjusted in the X, Y directions and the vertical and horizontal directions can both be applied.
However, the center of gravity must face the micrometer head. If mounted in the other direction, the weight may cause it to sink. Some products have holes in the middle for laser beams or cables to go through.
Specification / Model | P-25 | P-25T |
---|---|---|
Stage Surface (mm) | 140 X 140 X 45 | 140 X 140 X 45 |
Center Hole | Solid | Thru |
Stroke XY (mm) | ± 12.5 | ± 12.5 |
Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) |
Travel Guide | Round Bar & Ball Bush | Round Bar & Ball Bush |
Material | Aluminum | Aluminum |
Load Capacity (kg) Center | 10 | 10 |
Load Capacity (kg) Vertical | 5 | 5 |
Weight (kg) | 1 | 1 |
