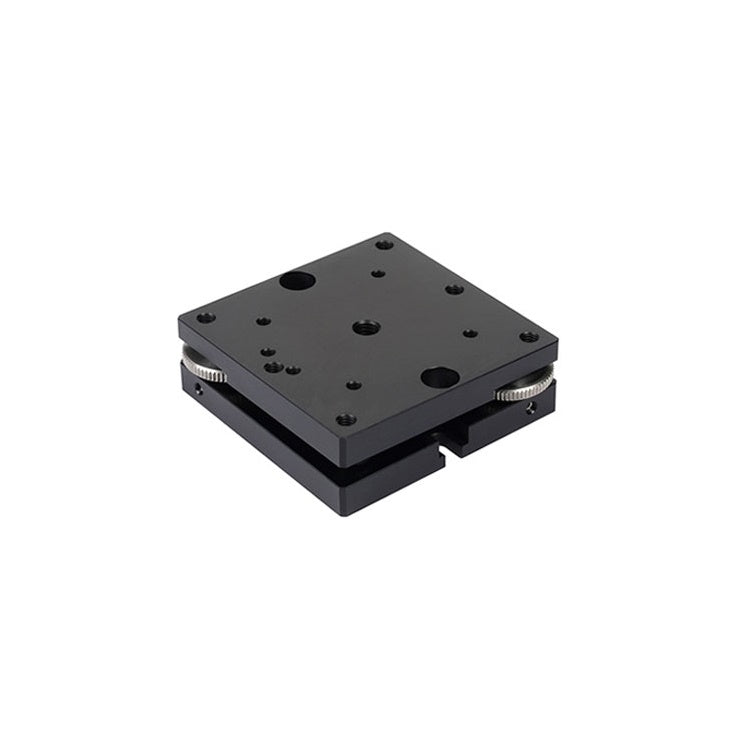

Spring Guide T1 Tilt-Stages

This stage is for adjusting the slope and wobble of a sample on the table at the desired angle using a two-point method. The sample can be adjusted quickly and simply using two adjusting parts on the side; the adjusting part is in the sideward direction, so it does not protrude out and thus it is space-saving. It is low cost and is perfect where scales are not required.
Specification / Model | T1-40 | T1-60 | T1-80 |
---|---|---|---|
Stage Surface (mm) | 40 X 40 | 60 X 60 | 80 X 80 |
Travel Guide | Screw | Screw | Screw |
Angle Stroke - α | ± 2º | ± 2º | ± 2º |
Angle Stroke - β | ± 2º | ± 2º | ± 2º |
Material | Aluminum | Aluminum | Aluminum |
Travel Distance per Rev. Knob | 0.94º | 0.64º | 0.44º |
Weight (kg) | 0.02 | 0.17 | 0.32 |
