○ Realization of high speed by 1000mm/s of Maximum speed.
○ 2000mm maximum standard stroke.
○ High positioning repeatability ±5㎛
○ Retainer type applied LM guide1000
○ Possible to combine actuator at both the top and the bottom direction.

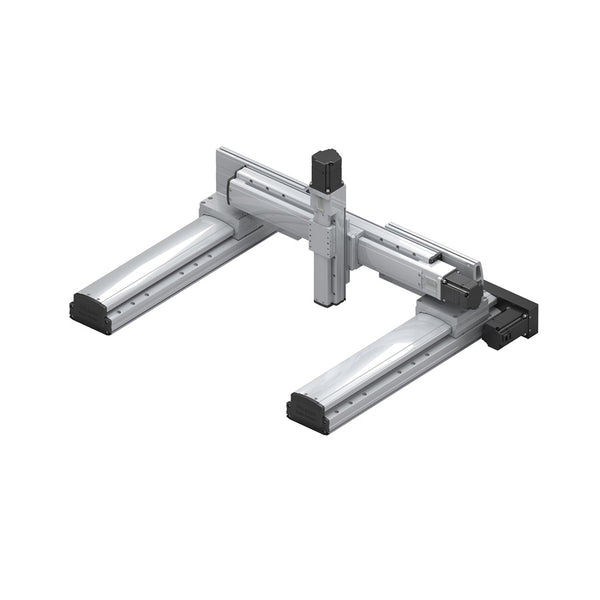

○ Various combinations with multi-axis are possible(2~4 axis).
○ Easy-various motors attachment
○ High accuracy by precision rolled screw & ground screw.
PSA45, 45H: The said figures are the reference values prepared based on Mitsubishi HG-KR13 (100W) so that they are subject to changes depending on a type of motor used.
PSA65, 65H, 95, 95H: The said figures are the reference values prepared based on Mitsubishi HG-KR23 (200W) so that they are subject to changes depending on a type of motor used.
PSA125, 125H: The said figures are the reference values prepared based on Mitsubishi HG-KR43 (400W) so that they are subject to changes depending on a type of motor used.
PSA 165, 165H, 210 NOTE1), 210H NOTE1): The said figures are the reference values prepared based on Mitsubishi HG-KR73 (750W) so that they are subject to changes depending on a type of motor used.
PSA 210 NOTE2), 210H NOTE2): The said figures are the reference values prepared based Mitsubishi HG-SR102 (1KW) so that they are subject to changes depending on a type of motor used.
* If the stroke is over 1100mm, Ball screw Ø 20 with lead 5 & 10 is used precision rolled screw.
