Motorized Rotation Stages - AR 60-200mm
AR-0600-2S
Table size(mm) : Φ60
Travel Range(º) : 360º
Mechanical Drive System: Warm Gear(1:180), Ball Bearing
Material: Aluminum
| Table Dimension(mm) | Φ60 | Parallelism(mm) | 0.05 |
| Travel Range(º) | 360º | Straightness(mm) | 0.02 |
| Mechanical Drive System | Warm Gear (1/180)
Ball Bearing |
Load Capacity(kg) | 3 |
| Resolution(mm) | 0.004º/Pulse(Full Step) | Material | Aluminum |
| Max Speed | 20º /sec(5kHz) | Weight(kg) | 0.6 |
| Accuracy | 0.05º | Motor Model |
CRK523HPBPB (5P STEP) (Motor, Drive set) |
| Uni-Repeatability | ±0.02º | Drive Model | |
| Backlash | 0.15º | Sensor(주1) | Only DC5V, 1Home Sensor |
| Connector Spec. |
HR-10A-10J-12P (HRS) |
Annotation 1: Power Input and photocoupler level are only for DC 5V. In the case of 24V, an extra converter (Amplifier) is required.

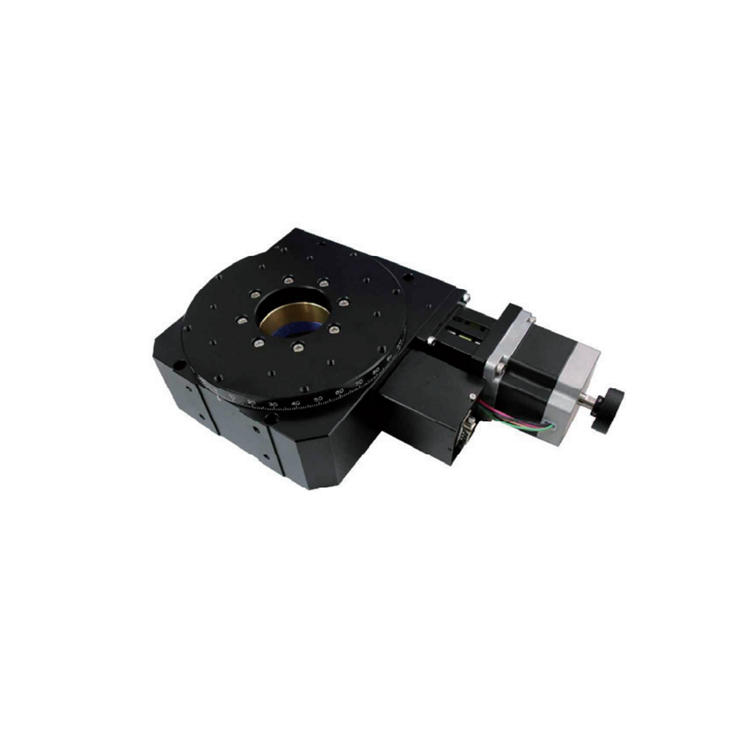

AR-0900-3S
Table size(mm) : Φ90
Travel Range(º) : 360º
Mechanical Drive System: Warm Gear(1:180), Cross roller Ring
Material: Aluminum
|
Table Dimension(mm) |
Φ90 | Parallelism(mm) |
0.02 |
|
Travel Range(º) |
360º | Straightness(mm) |
0.01 |
|
Mechanical Drive System |
Warm Gear (1/180)
Cross roller ring |
Load Capacity(kg) |
10 |
|
Resolution(mm) |
0.004º/Pulse(Full Step) | Material |
Aluminum |
|
Max Speed |
20º /sec(5kHz) | Weight(kg) |
2.4 |
|
Accuracy |
0.025º | Motor Model |
PK-545-NBW (59 STEP) |
|
Uni-Repeatability |
±0.015º | Drive Model |
CRD5107PB |
|
Backlash |
0.03º | Sensor |
1Home Sensor |
|
Connector Spec. |
D-SUB-9P(Male) |
AR-1200-3S
Table size(mm) : Φ120
Travel Range(º) : 360º
Mechanical Drive System: Warm Gear(1:180), Ball Bearing
Material: Aluminum
| Table Dimension(mm) | Φ125 | Parallelism(mm) | 0.02 |
|
Travel Range(º) |
360º | Straightness(mm) |
0.01 |
|
Mechanical Drive System |
Warm Gear (1/180)
Cross roller ring |
Load Capacity(kg) |
15 |
|
Resolution(mm) |
0.004º/Pulse(Full Step) | Material |
Aluminum |
|
Max Speed |
20º /sec(5kHz) | Weight(kg) |
3 |
|
Accuracy |
0.025º | Motor Model |
PK-545-NBW (59 STEP) |
|
Uni-Repeatability |
±0.015º | Drive Model |
CRD5107PB |
|
Backlash |
0.03º | Sensor |
1Home Sensor |
| Connector Spec. |
D-SUB-9P(Male) |
AR-1500-3S
Table size(mm) : Φ150
Travel Range(º) : 360º
Mechanical Drive System: Warm Gear(1:180), Cross roller ring
Material: Aluminum
Worm gear type
1. Worm gear-type 360 ° rotating stage
2. High-precision implementation at wide-angle
| Table Dimension(mm) | Φ150 | Parallelism(mm) | 0.02 |
| Travel Range(º) | 360º | Straightness(mm) | 0.015 |
| Mechanical Drive System | Warm Gear (1/180)
Cross roller ring |
Load Capacity(kg) | 20 |
| Resolution(mm) | 0.004º/Pulse(Full Step) | Material | Aluminum |
| Max Speed | 20º /sec(5kHz) | Weight(kg) | 6 |
| Accuracy | 0.025º | Motor Model |
CRK566BPB (PK566NBW+CRD5114PB) |
| Uni-Repeatability | ±0.015º | Drive Model | |
| Backlash | 0.03º | Sensor | 1Home Sensor |
| Connector Spec. | D-SUB-9P(Male) |
AR-2000-3S
Table size(mm) : Φ200
Travel Range(º) : 360º
Mechanical Drive System: Warm Gear(1:180), Cross roller ring
Material: Aluminum
Worm gear type
1. Worm gear-type 360 ° rotating stage
2. High-precision implementation at wide-angle
| Table Dimension(mm) | Φ200 | Parallelism(mm) | 0.03 |
| Travel Range(º) | 360º | Straightness(mm) | 0.02 |
| Mechanical Drive System | Warm Gear (1/180)
Cross roller ring |
Load Capacity(kg) | 30 |
| Resolution(mm) | 0.004º/Pulse(Full Step) | Material | Aluminum |
| Max Speed | 20º /sec(5kHz) | Weight(kg) | 12 |
| Accuracy | 0.05º | Motor Model |
CRK566BPB (PK566NBW+CRD5114PB) |
| Uni-Repeatability | ±0.015º | Drive Model | |
| Backlash | 0.03º | Sensor | 1Home Sensor |
| Connector Spec. | D-SUB-9P(Male) |
