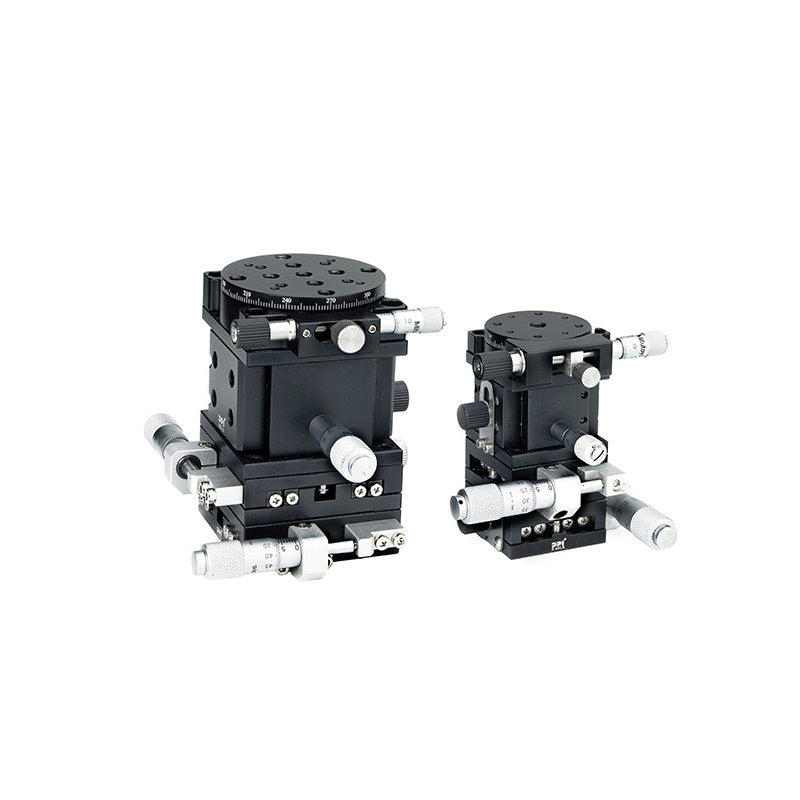

SU4 Stage Units
SU4 Stage Units

Brand: St-eng

Product Code:

Availability:In stock

$571.00 538.00

Available Options

Qty

Add to Compare

The combined stage allows users to customize and combine all models in the catalog. For the combined axis type, the user can select the axis shape from 3 axes to 6 axes or more.

Model Distribution
X, Y, R combined SU3-series
X, Y, Z, R combined SU4-series
X, Y, Z, Xθ, Yθ combined SU5-series
X, Y, Z, Xθ, Yθ, R combined SU6-series




Specification / Model SU4-4016 SU4-4018 SU4-6018 SU4-6020
Stage Surface (mm) 40 X Φ40 40 X Φ40 60 X Φ60 60 X Φ60
Travel Range (mm) XY: ±6.5 / Z: ±3 / R: 360º ±5º XY: ±6.5 / Z: ±3 / R: 360º ±5º XY: ±6.5 / Z: ±6.5 / R: 360º ±5º XY: ±6.5 / Z: ±6.5 / R: 360º ±5º
Load Capacity (kg/f) 0.8 0.8 2.5 2.5
Weight (kg) 0.5 0.5 1.55 1.55
Applicable Stage - XY S2-4016 (107P) S2-4018 (108P) S2-6018 (109P) S2-6020 (110P)
Applicable Stage - Z S6H-40 (138P) S6H-40 (138P) S6H-60 (139P) S6H-60 (139P)
Applicable Stage - R RDS-40 (206P) RDS-40 (206P) RDS-60 (206P) RDS-60 (206P)
Dimension A (mm) 40 40 60 60
Dimension B (mm) 83 87 110 114
Dimension C (mm) 13.3 13.3 13.3 13.3
Dimension D (mm) 20.5 20.5 31.5 31.5
Dimension E (mm) 21.5 21.5 35.5 35.5
Dimension F (mm) 21 21 28.5 28.5



Specification / Model SU4-6024 SU4-80 SU4-100
Stage Surface (mm) 60 X Φ60 80 X Φ80 100 X Φ100
Travel Range (mm) XY: ±6.5 / Z: ±6.5 / R: 360º ±5º XY: ±12.5 / Z: ±6.5 / R: 360º ±5º XY : ±12.5 / Z : ±12.5 / R : 360º ±5º
Load Capacity (kg/f) 2.5 3.5 4
Weight (kg) 1.55 2.57 3.54
Applicable Stage - XY S2-6024 (111P) S2-80 (112P) S2-100 (113P)
Applicable Stage - Z S6H-60 (139P) S6H-80 (142P) S6H-100 (143P)
Applicable Stage - R RDS-60 (206P) RDS-80 (206P) RDS-100 (210P)
Dimension A (mm) 60 80 100
Dimension B (mm) 122 125 165
Dimension C (mm) 13.3 13.3 13.3
Dimension D (mm) 31.5 31 29
Dimension E (mm) 35.5 40.7 69.7
Dimension F (mm) 28.5 24.1 24.1
